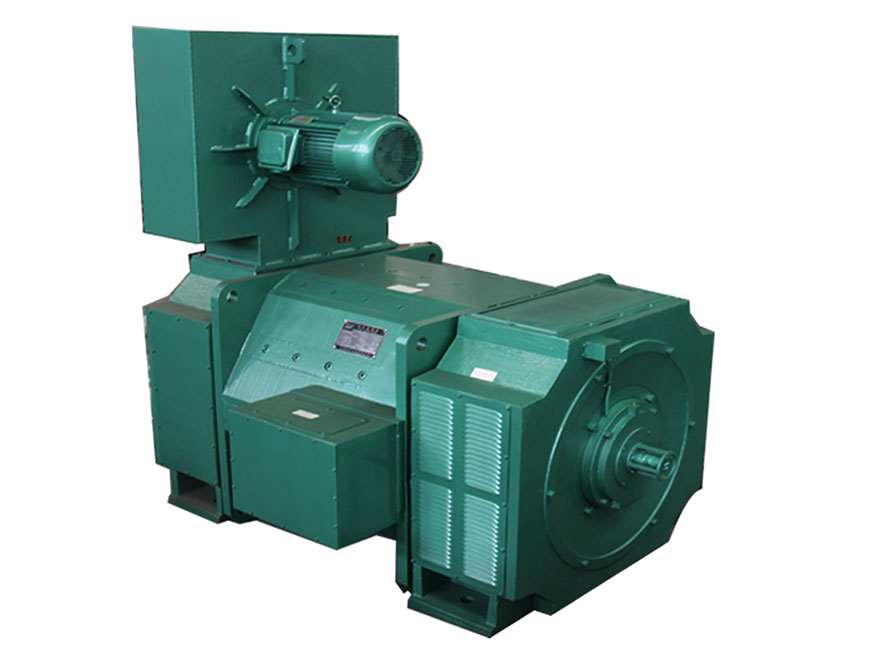

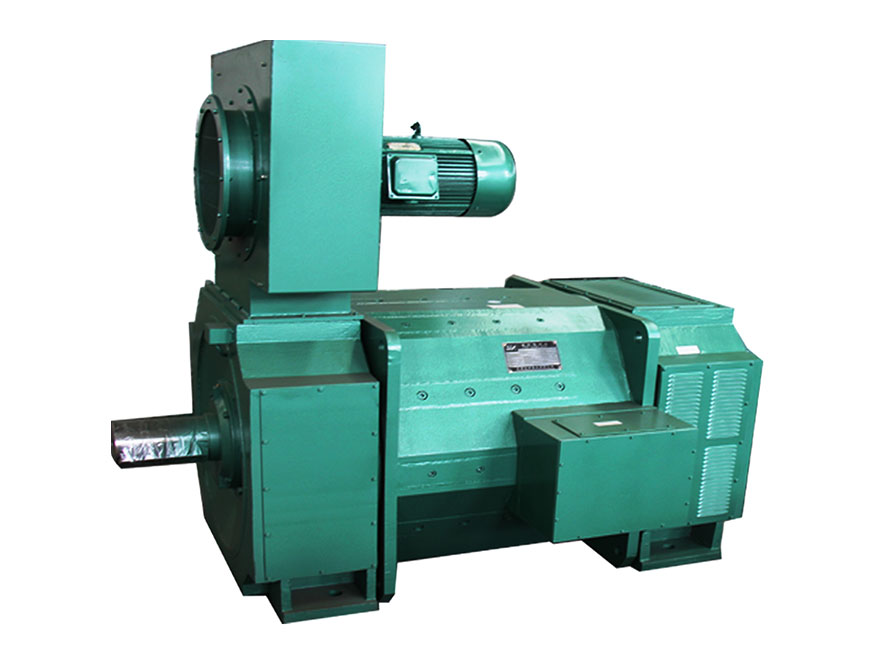

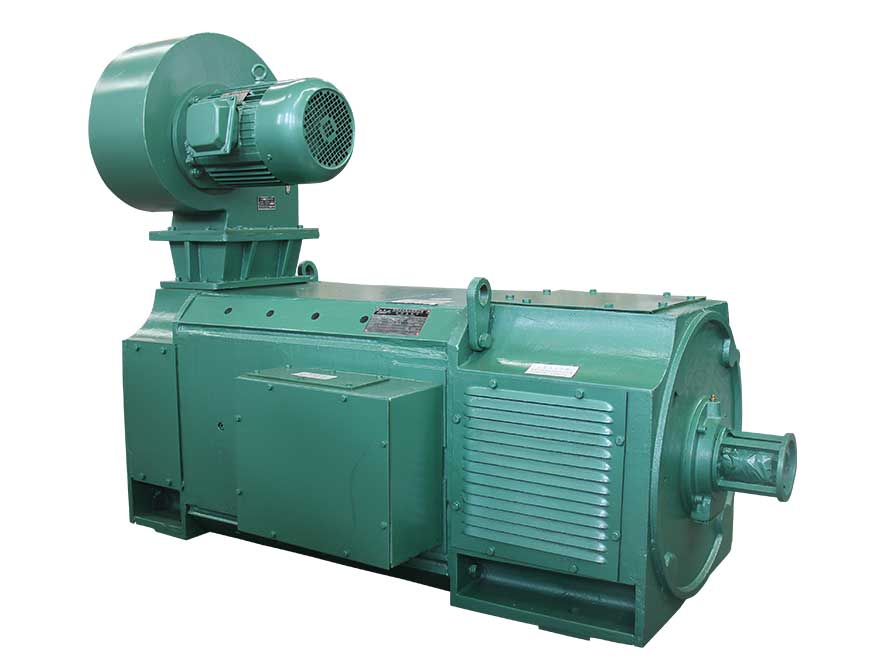

Z Series Medium DC Motor

Frame size: H355--800mm

Power range: 57kW--1500kW

Speed: 40--1500r/min

Rated voltage: 220V, 330V, 440V, 550V, 660V, 750V, etc

Exciting voltage: 160V, 220V, 400V, etc

Insulation class: F

Degree of protection: IP23, IP44

Mounting arrangemnt: IMB3

Cooling method: IC06, ICl7, IC37, IC611, ICW37A86

Type duty: S1

Certification: CE,CCC,ISO

Used as main drive of: metal rolling mill, reeling machine, extracting machine for sugar production, drive of cement rotary kiln, extruding machinery for rubber and plastic products.etc.

Inquire Now

PDF download

Details

Features

The series brushed dc motors utilize polygonal configuration and stator with sufficient internal space being used. Stator with laminated magnetic yoke matched with SCR power supply is capable of withstanding loading under pulsing current or abrupt variation of current. Magnetic poles are precisely located and main motors of Z series having compensating windings can all provide a fine reversing function. Motor with insulation class F has reliable insulation structure and is dip-coated without solvent under vacuum pressure for ensuring stable insulation and fine heat emission.

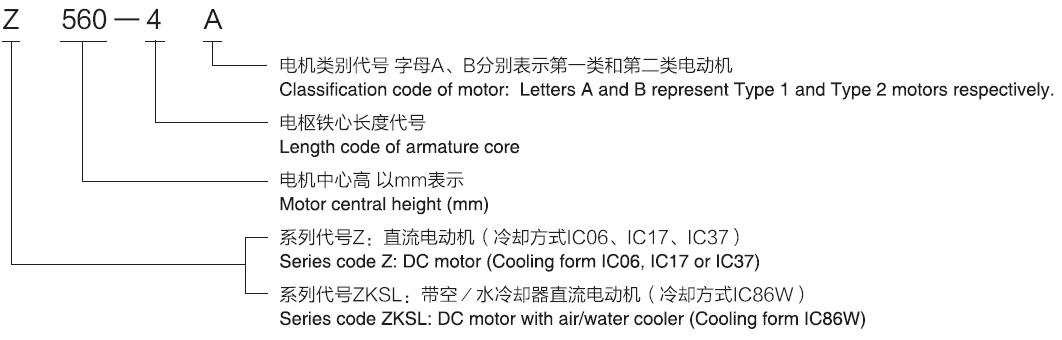

Z Series Medium DC Motor

Description of Configuration

1.Cooling form and class of protection

a) Indirect cooling form available according to GB/T1993 "Cooling Method for Rotary Motor" has four standard types: IC06

IC07IC37 and IC86W. Their cooling air inlets are all located at the main drive end of motor (the non-reverser end). According to GB4942.1 hell Protection class (IP code) of Rotary Motor" protection classes of the series motors are IP23 and IP44. Other cooling form and protection class can be provided according to

customer's requirement.

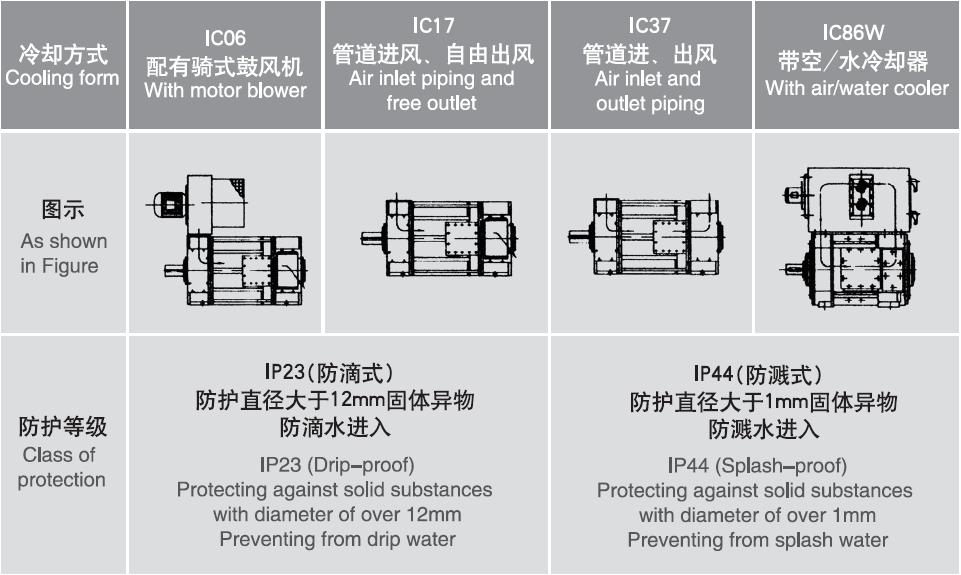

Relationship of cooling form and protection class of motor is listed in Table 1.

Z Series Medium DC Motor

2. Types and codes of motor configuration and installation

Types and codes of motor configuration and inst lation have two versions: IM1001 (horizontal typebody with base footings cylindrical single shaft) and IM1002 (horizontal typebody with base footingstwo cylindrical shafts) in conformance with GB.997 "Types of Configuration and Installation of Rotary Motor1M Code". Other cooling form and protection class can be provided according to customer's requirement.

3. For standard-type motorterminal box is located at the right side from main drive end. If it need be fixed on the left sidemake an indication when ordering.

4. Motor utilizes rolling bearing with oil filling during operation.

5. Motor can be fitted with the following accessories:

a) Temperature measuring elements are located in stator winding and bearing body and connected to terminal box of motor with lead.

b) Speed measuring and protective device including techogeneratorcentrifugal regulatorencoderetc is fitted at non driving end of motor.

c) 220V anti-condensation heater can be located in motor. If required, indicate it in ordering contract.

6. Air/water cooler is normally installed above motor. If user needs to position the cooler at the side place of motorit should be indicated when ordering and user must prepare its supporter.

7. Cooler is fitted with protective devices such as air pressure switchtemperature controlleranti-condensation heateretc.

(Table 2)

Frame	Built-on Blower				Air-to-water Heat Exchanger
	Cooling Wind	Wind Pressure (whisht pressure)	Motor Mower	Weight	Cooling Water Flux	Motor Power	Weight
	m3/hr	Pa	kW	kg	m3/hr	kW	kg
H500	10000	1900	7.5	300	19	11	900
H560	16500	2250	15	400	22	18.5	1100
H710	23500	2400	18.5	600	40	2×11	1600

Technical Data Sheet

Z500-2A suitable for IC06、IC17、IC37

ZKSL500-2A suitable for IC86W

Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
kW	750V	660V	550V	440V	r/min	A	kW	%	kg2·m	kg
580	610				1300	830	6.8	92.5	40	5800
500		530			1200	835		91.1
425			440		1100	850		90.4
340				350	1000	865		88.1
690	720				1300	980		93.6
600		630			1200	970		93
500			505		1100	980		92
405				410	1000	1010		90.4
740		810			1400	1190		94
620			650		1300	1210		93
510				510	1200	1250		91

Z500-3A suitable for IC06、IC17、IC37

ZKSL500-3A suitable for IC86W

Rating power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
Rating power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
kW	750V	660V	550V	440V	r/min	A	kW	%	kg2·m	kg
530	490				1200	765	7.2	91	45	6300
460		415			1100	760		90.3
390			335		1000	790		89.1
310				260	700	805		86.4
620	550				1300	890		92.1
570		490			1200	935		91.5
480			415		1100	960		90.3
370				315	900	945		87.8
720		670			1300	1160		93
630			580		1200	1125		92.1
530				416	1100	1300		91.5

Z500-4A suitable for IC06、IC17、IC37

ZKSL500-4A suitable for IC86W

Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
kW	750V	660V	550V	440V	r/min	A	kW	%	kg2·m	kg
540	385				1000	785	8.5	91	55	7200
470		335			900	790		89.1
400			270		800	815		88
329				220	700	860		85.8
640	460				110	920		91.7
560		400			1000	920		91
490			333		1000	975		89.4
380				260	700	960		88
710		510			1200	1145		93
650			430		1000	1280		91
515				345	900	1290		90

Z560-2A suitable for IC06、IC17、IC37

ZKSL560-2A suitable for IC86W

Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
kW	750V	660V	550V	440V	r/min	A	kW	%	kg2·m	kg
720	600				1200	1035	7	91.8	150	700
640		520			1200	1050		91.3
550			430		1200	1100		89.7
440				340	1000	1115		87.9
830	720				1300	1180		93.1
760		630			1200	1235		92.3
650			520		1200	1280		91.3
530				410	1200	1320		90.1
890		760			1250	1435		93.2
770			640		1200	1500		92.5
630				510	1200	1555		91.1
935			820		1200	1810		93.2
780				650	1200	1900		92

Z560-3A suitable for IC06、IC17、IC37

ZKSL560-3A suitable for IC86W

Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
kW	750V	660V	550V	440V	r/min	A	kW	%	kg2·m	kg
730	600				1200	1040	8.5	91.8	175	7500
650		420			1200	1070		91.3
540			345		1000	1085		89.7
435				270	800	1110		87.9
870	590				1200	1240		93.1
770		510			1200	1255		92.3
660			420		1200	1305		91.3
530				330	1000	1325		90.1
890		610			1250	1430		93.2
760			510		1200	1485		92.5
620				400	1200	1535		91.1
960			660		1200	1860		93.2
790				520	1200	1930		92.1

Z560-4A suitable for IC06、IC17、IC37

ZKSL560-4A suitable for IC86W

Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
kW	750V	660V	550V	440V	r/min	A	kW	%	kg2·m	kg
700	380				1100	1020	9	90.3	205	8000
635		335			1000	1055		90
530			275		700	1070		88.6
415				215	700	1075		86
835	470				1200	1240		92.6
800		410			1100	1305		91.9
650			340		1000	1290		90.4
515				265	900	1300		89
900		480			1250	1470		91.9
745			395		1200	1455		92
590				310	1100	1465		90.2
950			525		1200	1845		92.8
770				415	1100	1890		91.6

Z560-5A suitable for IC06、IC17、IC37

ZKSL560-5A suitable for IC86W

Rating Power	Rotate Speed(r/min)Under Rating Voltage				Max.speed	Armature Urrent	Excitation Power	Efficiency	Running Inertia	Weight
kW	750V	660V	550V	440V	r/min	A	kW	%	kg2·m	kg
700	310				900	1020	10	90.7	245	9000
640		270			800	1070		89.6
520			220		700	1060		87.7
870	370				1000	1250		92
770		325			900	1255		91.6
640			270		700	1270		90.3
500				210	700	1280		87.4
900		380			1000	1460		92.4
750		480	315		1000	1470		91.6
590				250	700	1470		89.8
900			380		1000	1750		92.5
720				300	900	1780		90.8

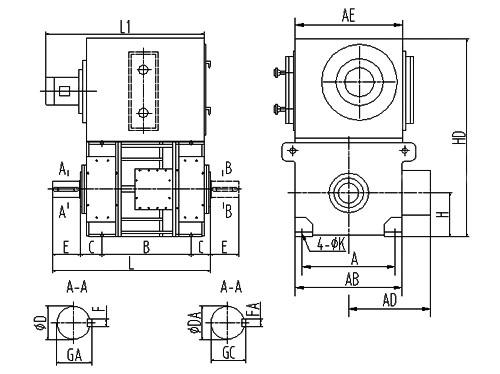

Mounting Size

Mounting Size

Type	Mounting Dimension													Verall Dimendion
	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	AB	AD	L	L1	HD	AE	h
ZKSL500-1	900	1000	280	160	300	40	169	160	300	40	169	500	42	1090	900	2030	2530	2200	1100	45
ZKSL500-2		1120														2150	2650
ZKSL500-3		1250														2300	2800
ZKSL500-4		1400														2450	2950
ZKSL560-2	1000	1000	315	180	300	45	190	180	300	45	190	560	48	1200	1100	1930	2480	2400	1200	50
ZKSL560-2		1120														2050	2600
ZKSL560-3		1250														2200	2750
ZKSL560-4		1400														2350	2900
ZKSL560-5		1600														2550	3100

Type	Mounting dimension													Overall dimendion
	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	AB	AD	L	L1	HD	AE	h
ZKSL500-1	900	1000	280	160	300	40	169	160	300	40	169	500	42	1090	900	2030	2130	1900	160	45
ZKSL500-2		1120														2150	2250
ZKSL500-3		1250														2300	2400
ZKSL500-4		1400														2450	2550
ZKSL560-2	1000	1000	315	180	300	45	190	180	300	45	190	560	48	1200	1100	1930	2030	2250	190	50
ZKSL560-2		1120														2050	2150
ZKSL560-3		1250														2200	2300
ZKSL560-4		1400														2350	2450
ZKSL560-5		1600														2550	2650

Notice for Ordering

1. When ordering motors, please give the following information: model, power, voltage, speed, exciting voltage, cooling mode, number of output shafts, position of terminal box, etc.

2. When ordering motors, please indicate models, specifications and quantities of accessories fitted on motors.

3 .When motors for tropicalized service is needed, please add TH behind the model to be ordered.

4. In case the specifications of ordered motors are different with the catalog, contact our company and inform us your concrete and definite requirements. After negotiation, make a note on contract to be signed.
